UV Air Recirculator Defender 3-15 closed type is designed to clean and disinfect air in the presence of people. It can work continuously throughout the day, preventing an increase in the level of microbial contamination of indoor air, regardless of the number of people in it and its category. Defender 3-15 is used for air purification both in hospitals and educational institutions, kindergartens, beauty parlors, and cultural institutions. Also, can be used at home.
The radiation source is two ultraviolet germicidal lamps, which do not emit ozone and are safe for long-term use. The body of the irradiator is made of steel, coated with a special powder paint that is resistant to disinfectants.

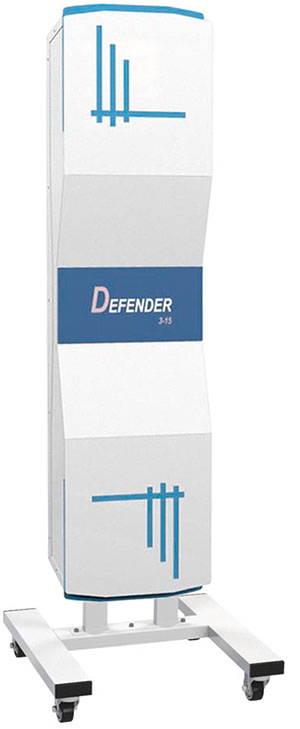

Defender 3-15 is mounted either vertically on the wall or on a special stand.
Features of the closed-type bactericidal recirculator Defender 3-15 can operate in the presence of people.
The radiation source is low-pressure mercury discharge lamps, which give short-wave UV radiation with a maximum of 253.7 nm, which has a bactericidal effect. To prevent ozone synthesis, the lamp bulbs are made of special glass, which is impervious to wavelengths around 200 nm.
The service life of UV lamps is at least 8000 hours.
Application
Long-term use in any premises in the presence of people or animals is possible.
General recommendations for using recirculators in closed rooms when working in the presence of people:
In the room, it is advisable to create an inflow of fresh air (from the street), for example, periodically ventilate.
It is not recommended to leave the recirculator turned on overnight, or sleep in a room with the recirculator turned on.
Depending on the volume and category of premises, the following processing time is recommended
Volume of premises, m3
Processing time (min.) at efficiency
99,9%
1 category
99%
2 category
95%
3 category
up to 80
60
45
30
from 81 to 160
120
90
60
Number of germicidal lamps
3
Nominal lamp power, W
15
The performance of the irradiator with a bactericidal efficiency of 99.9% (for Staphylococcus aureus),
99,9
Productivity, m3 / h
80±10
Power no more, W
80
Rated voltage, V
220±22
Frequency, Hz
50±0,4
Noise level no more, dB
40
Lamp life, hrs
8000
Service life of the irradiator, years
5
Dimensions, mm
850х230х96
Weight, no more, kg
5,5
